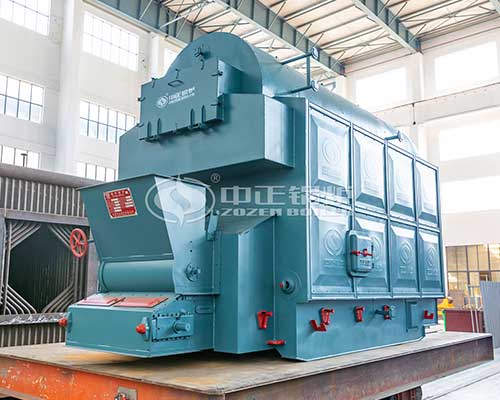

Coal Biomass Fired Steam Boiler
- Type：Steam Boiler
- Capacity：2–20t/h
- Pressure：1-2.5 MPA
- Fuel：Biomass particles
- Application：Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
2 Ton to 20 Ton Coal Biomass Fired Steam Boiler Detail
- Output: Steam
- Range of Capacity: 2 ton, 3 ton, 4 ton, 5 ton, 6 ton, 8 ton, 10 ton, 20 ton
- Fuel Design: biomass,rice husk, pellet,coal
- Design Pressure: 1.0Mpa, 1.25Mpa, 1.57Mpa, 2.45Mpa
- Warranty: 1 Year
- Structure: horizontal three-pass water & fire tube boilers
- Factory: ZOZEN boiler Co., Ltd.
- Application: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
- Style: Horizontal boiler
- Design Efficiency: Thermal Effciency ≥ 88%
- Condition: New
- Use: Industrial
- Product Name: 2 Ton to 20 Ton Coal Biomass Fired Steam Boiler
Overview
Brief Introduction:
DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
Application:
Industrial Low Pressure Biomass Fire Tube Boiler is mainly used in Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.
You may also like
Features
-
Arched tube sheets and threaded fire tube was first adopted in China to increase heat transfer and completely solve the problem of cracking of the back.
-
The flange of the socket is welded by robots.
-
Advanced manufacturing technology, using assembly line automatic spinning manufacturing.
-
The high-temperature smoke generated by the combustion first enters the horoscope flue on both sides of the boiler proepr from the tail (in this case, the boiler is water tube type), and the flue gas flows outside the tube.
Product Parameters
| Model | Rated thermal power（t/h/MW） | Rated working pressure（MPa） | Steam temperature/Rated output water temperature（℃） | Thermal efficiency（%） | Maximum transport size(m) (L×W×H) |
| DZL2-1.25-M | 2/1.4 | 1.25 | 194 | 88% | 5.7×2.5×3.5 |
| DZL2-1.57-M | 2/1.4 | 1.57 | 204 | 88% | 5.7×2.5×3.5 |
| DZL2-2.45-M | 2/1.4 | 2.45 | 225 | 88% | 5.7×2.5×3.5 |
| DZL4-1.25-M | 4/2.8 | 1.25 | 194 | 88% | 6.6×2.6×3.6 |
| DZL4-1.57-M | 4/2.8 | 1.57 | 204 | 88% | 6.6×2.6×3.6 |
| DZL4-2.45-M | 4/2.8 | 2.45 | 225 | 88% | 6.6×2.6×3.6 |
| DZL6-1.25-M | 6/4.2 | 1.25 | 194 | 88% | 7.3×3.2×3.6 |
| DZL6-1.60-M | 6/4.2 | 1.6 | 204 | 88% | 7.3×3.2×3.6 |
| DZL10-1.25-M | 10/7 | 1.25 | 194 | 88% | customized size |
| DZL10-1.60-M | 10/7 | 1.6 | 205 | 88% | customized size |
| DZL15-1.25-M | 15/10.5 | 1.25 | 194 |
88% |
customized size |
| DZL15-1.60-M | 15/10.5 | 1.6 | 205 |
88% |
customized size |
| DZL20-1.25-M | 20/14 | 1.25 | 194 |
88% |
customized size |
| DZL20-1.60-M | 20/14 | 1.6 | 205 |
88% |
customized size |
