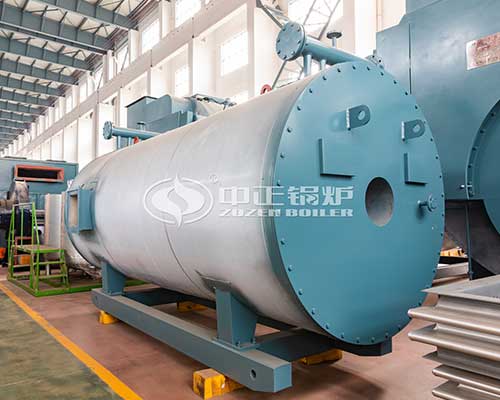

2000000kcal Gas Oil Fired Thermal Oil Boiler
- Type：Thermal Oil Boiler
- Capacity：1400-14000 KW
- Pressure：0.8Mpa, 1.0 Mpa (8 bar, 10 bar)
- Fuel：Natural gas, coke oven gas, bio-gas，liquid propane gas, diesel, heavy oil, light oil, crude oil
- Application：Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
2000000kcal YYQW Gas Oil Fired Thermal Oil Boiler Detail
- Output: Thermal Oil Heater
- Range of Capacity: 1400-14000 KW
- Fuel Design: Natural gas, coke oven gas, bio-gas
- Design Pressure: 0.8Mpa, 1.0 Mpa (8 bar, 10 bar)
- Warranty: 1 Year
- Structure: Organic Heat Transfer Heating Boiler
- Factory: ZOZEN boiler Co., Ltd.
- Application: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
- Style: Horizontal boiler
- Design Efficiency: ≥95%
- Condition: New
- Use: Industrial
- Product Name: 2000000kcal YYQW Gas Oil Fired Thermal Oil Boiler
You may also like
Overview
Brief Introduction:
YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.
This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).
Features
-
The manufacture of round coil tube adopts CNC coil tube automatic production line. Once-forming and no need for plastic.
-
Fully automatic operating, burning, liquid level of high level tank, outlet temperature and flow rate are adjusted automatically and self-protected.
-
Multilayers closely spaced tube bundle and steel rod is used to seal and fix, completely eradicating short circuit of flue gas.
-
The inner coil tube has bigger flow rate, so it is more stable under high temperature operation.
Product Parameters
| Model | Rated thermal power (KW) | Rated thermal power (x104kcal/h) | Design working temperature(≤℃) | Rated working pressure(MPa) | Thermal efficiency (≥%) | System installation power(KW) | Maximum transport size(m) (L×W×H) |
| YQW-1400 Y(Q) | 1400 | 120 | 320 | 0.8 | 95 | 35 | 4.3×2.0×2.6 |
| YQW-1800 Y(Q) | 1800 | 160 | 320 | 0.8 | 95 | 56 | 4.9×2.2×2.6 |
| YQW-2400 Y(Q) | 2400 | 200 | 320 | 0.8 | 95 | 56 | 5.3×2.5×3.0 |
| YQW-2800 Y(Q) | 2800 | 240 | 320 | 0.8 | 95 | 66 | 6.1×2.5×3.0 |
| YQW-3500 Y(Q) | 3500 | 300 | 320 | 0.8 | 95 | 75 | 6.7×2.6×3.0 |
| YQW-4200Q | 4200 | 360 | 320 | 0.8 | 95 | 95 | 6.9×2.7×3.2 |
| YQW-4600Q | 4600 | 400 | 320 | 0.8 | 95 | 95 | 7.0×2.9×3.4 |
| YQW-6000Q | 6000 | 500 | 320 | 0.8 | 95 | 140 | 7.2×3.3×3.9 |
| YQW-7000Q | 7000 | 600 | 320 | 0.8 | 95 | 140 | 8.0×3.6×4.0 |
| YQW-8200Q | 8200 | 700 | 320 | 0.8 | 95 | 140 | 8.5×3.7×4.0 |
| YQW-9400Q | 9400 | 800 | 320 | 1 | 95 | 200 | 9.5×3.8×4.0 |
| YQW-10500Q | 10500 | 900 | 320 | 1 | 95 | 200 | 10.5×3.8×4.0 |
| YQW-12000Q | 12000 | 1000 | 320 | 1 | 95 | 240 | 12.4×3.8×4.0 |
| YQW-14000Q | 14000 | 1200 | 320 | 1 | 95 | 300 | 13.5.×4.0×4.2 |
Work Shop
