DZL Series Biomass Fired Hot Water Boiler
- Type：Hot Water Boiler
- Capacity：1.4-14 MW
- Pressure：1.0-1.6 MPA
- Fuel：Biomass molding granules, wood chip, corn cob, palm shell
- Application：Heating, Hotels, Schools, Hospitals
Overview
Brief Introduction:

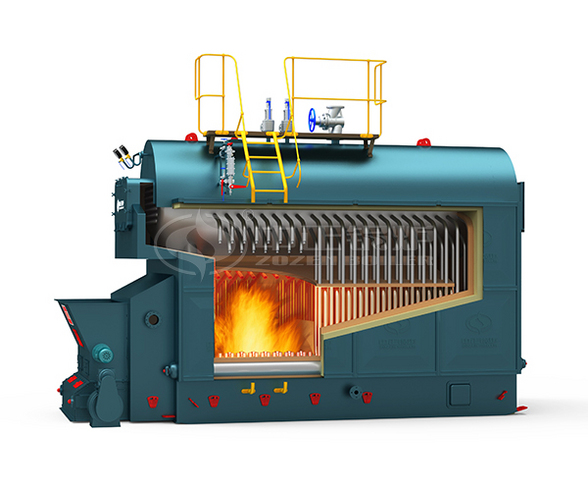

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
Features
-
Arched tube sheets and threaded fire tube was first adopted in China to increase heat transfer and completely solve the problem of cracking of the back tube sheet.
-
The welding of smoke tube and the tube plate adopts pre-expansion to eliminate the gap between the tube and tube plate, then be welded by automatic argon arc welding, which effectively eliminate stress and prolong boiler life.
-
The independent secondary fan makes it easy to control and adjust the wind volume and pressure.
