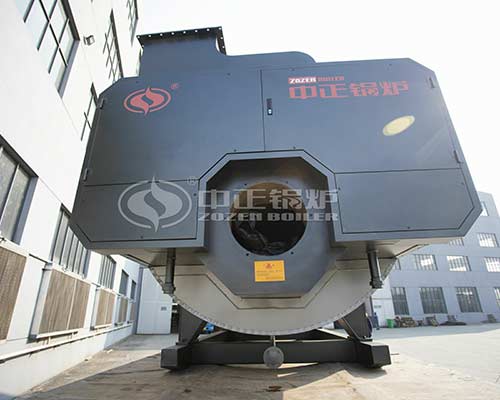

Light Oil Diesel Fuel Steam Boiler
- Type：Steam Boiler
- Capacity：1-20 t/h
- Pressure：0.7-2 Mpa
- Fuel：Natural Gas, Biogas, LPG, Light Oil, Diesel, Dual Fuel
- Application：Food Industry, Textile Plant, Hotel, Hospital, swimming pool, pharmaceutical factory, package plant, etc.
Natural Gas Light Oil Diesel Fuel Steam Boiler Detail
- Output: Steam
- Range of Capacity: 1 ton, 2 ton, 3 ton, 4 ton, 5 ton, 6 ton, 8 ton, 10 ton, 20 ton
- Fuel Design: Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
- Design Pressure: 0.7 Mpa, 1.0 Mpa,1.25 Mpa, 1.6 Mpa
- Warranty: 1 Year
- Structure: horizontal two pass fire tube boiler
- Factory: ZOZEN boiler Co., Ltd.
- Application: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
- Style: Packaged boiler
- Design Efficiency: High Effciency 95%-99%
- Condition: New
- Use: Industrial
- Product Name: Natural Gas Light Oil Diesel Fuel Steam Boiler
Overview
Brief Introduction:
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Application:
WNS series gas & oil fired boiler is mainly used in hospital, school, swimming pool, pharmaceutical factory, package plant, architectural material industry, food industry, textile dyeing and printing industry, clothing industry and other industries.
You may also like
Benefit
1.Low cost:
This boiler has many advantages such as high combustion efficiency, saving fuel, low investment cost, full pull side butt welds, long safe life and low maintenance cost.
2.High Efficiency:
The boiler tail is equipped with flue gas condensing recovery device which can effectively control the exhaust gas temperature so as to improve the boiler thermal efficiency; it adopts automatic combustor and water supply adopts continuous electrical control to ensure high combustion efficiency.
3.Safe and stable:
It is equipped with various defensive functions like over-temperature, over-pressure, water shortage, leakage detection and flame-out which make sure the boiler run safely and reliably.
4.Saving space:
The boiler adopts fast-assembly structure and the whole boiler is fixed on the steel base with high rigidity to ensure easy installation and transportation and small occupied area.
Product Parameters
| Model | Rated steam capacity（t/h） | Rated working pressure（Mpa） | Rated steam temperature（℃） | Maximum transport size(m) (L×W×H) |
| WNS1-0.7-Y(Q) | 1 | 0.7 | 170 | 3.3×1.8×2.1 |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 3.3×1.8×2.1 |
| WNS1.5-1.0-Y(Q) | 1.5 | 1 | 184 | 3.0×1.8×2.0 |
| WNS1.5-1.25-Y(Q) | 1.5 | 1.25 | 194 | 3.0×1.8×2.0 |
| WNS2-1.0-Y(Q) | 2 | 1 | 184 | 4.4×2.1×2.5 |
| WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | 4.4×2.1×2.5 |
| WNS3-1.0-Y(Q) | 3 | 1 | 184 | 4.6×2.3×2.6 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 4.6×2.3×2.6 |
| WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | 4.7×2.5×2.9 |
| WNS4-1.6-Y(Q) | 4 | 1.6 | 204 | 4.7×2.5×2.9 |
| WNS5-1.25-Y(Q) | 5 | 1.25 | 194 | 5.3×2.7×3.3 |
| WNS5-1.6-Y(Q) | 5 | 1.6 | 204 | 5.3×2.7×3.3 |
| WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | 5.9×2.6×3.0 |
| WNS6-1.6-Y(Q) | 6 | 1.6 | 204 | 5.9×2.6×3.0 |
| WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | 5.9×2.8×3.1 |
| WNS8-1.6-Y(Q) | 8 | 1.6 | 204 | 5.9×2.8×3.1 |
| WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | 7.7×2.8×3.1 |
| WNS10-1.6-Y(Q) | 10 | 1.6 | 204 | 7.7×2.8×3.1 |
| WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | 7.0×3.1×3.6 |
| WNS15-1.6-Y(Q) | 15 | 1.6 | 204 | 7.0×3.1×3.6 |
| WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | 8.3×3.4×4.0 |
| WNS20-1.6-Y(Q) | 20 | 1.6 | 204 | 8.3×3.4×4.0 |
