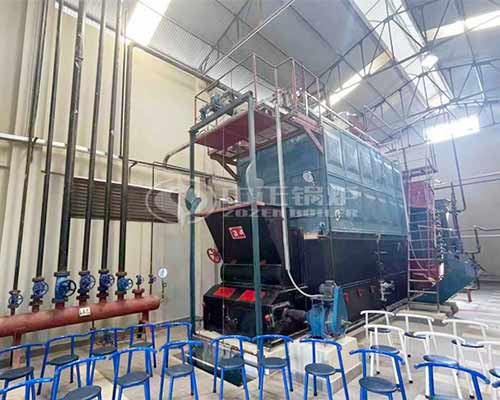

SZL Biomass Wood Solid Steam Boiler
- Type：Steam Boiler
- Capacity：4-35 t/h
- Pressure：1.0-2.5 MPA
- Fuel：Biomass molding granules, wood chip, corn cob, saw dust
- Application：Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital
SZL Biomass Wood Solid Fuel Fired Steam Boiler Detail
- Output: Steam
- Range of Capacity: 4 ton – 35 ton (384BHP – 1917BHP)
- Fuel Design: Biomass molding granules, wood chip, corn cob, saw dust
- Design Pressure: 1.0Mpa – 2.5Mpa(181.3PSI – 355.3PSI)
- Warranty: 1 Year
- Structure: Horizontal type water tube boiler
- Factory: ZOZEN boiler Co., Ltd.
- Application: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital
- Style: Packaged boiler
- Design Efficiency: High Effciency 79% – 82%
- Condition: New
- Use: Industrial
- Product Name: Water tube SZL Biomass Wood Solid Fuel Fired Steam Boiler
Overview
Brief Introduction:
SZL series boiler absorbs the merits from quick fitting boiler, features compact in structure, the boiler’s shop is of one storey arranged, convenient for site installation, short in construction period, cheap in cost, simple in operation and etc. This series of steam boiler is suitable for industrial and living steam consumption, the correspondent capacity hot water boiler is applied for industrial and civil heating purpose.
SZL series vertical dual drums chain grate water tube hot water boiler, adopts quick fitting and assembly structure. The 4-6t/h boiler is of quick fitting tube structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components.
Water tube SZL Biomass Wood Solid Fuel Fired Steam Boiler Structure::
The upper assembled component is the boiler proper heat absorbing part, and the lower assembled component is of combustion equipment. The former part of the boiler proper is arranged a membrane wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection tubes between upper and lower boiler cylinders.
You may also like
Features
-
Automatic production line.
-
The flange of the socket is welded by robots.
-
Advanced manufacturing technology, using assembly line automatic spinning manufacturing.
-
Graded air supply and special furnace arch structure decrease the NOx emissions to 100mg/m³.
Product Parameters
| Model | Rated thermal power（t/h） | Rated working pressure（MPa） | Steam temperature | Feed water temperature | Maximum transport size(m) (L×W×H) |
| SZL4-1.25-M | 4 | 1.25 | 194 | 20 | customized size |
| SZL4-1.60-M | 4 | 1.6 | 204 | 20 | customized size |
| SZL4-2.45-M | 4 | 2.45 | 225 | 20 | customized size |
| SZL6-1.25-M | 6 | 1.25 | 194 | 20 | 7.0×2.7×3.5 |
| SZL6-1.60-M | 6 | 1.6 | 204 | 20 | 7.0×2.7×3.5 |
| SZL6-2.45-M | 6 | 2.45 | 225 | 20 | 7.0×2.7×3.5 |
| SZL8-1.25-M | 8 | 1.25 | 194 | 20 | 6.9×3.2×5.3 |
| SZL8-1.60-M | 8 | 1.6 | 204 | 20 | 6.9×3.2×5.3 |
| SZL8-2.45-M | 8 | 2.45 | 225 | 20 | 6.9×3.2×5.3 |
| SZL10-1.25-M | 10 | 1.25 | 194 | 20 | 7.9×3.3×3.5 |
| SZL10-1.60-M | 10 | 1.6 | 204 | 20 | 7.9×3.3×3.5 |
| SZL10-2.45-M | 10 | 2.45 | 225 | 20 | 7.9×3.3×3.5 |
| SZL20-1.25-M | 20 | 1.25 | 194 | 20 | 11×3.2×3.5 |
| SZL20-1.60-M | 20 | 1.6 | 204 | 20 | 11×3.2×3.5 |
| SZL20-2.45-M | 20 | 2.45 | 225 | 20 | 11×3.2×3.5 |
| SZL30-1.25-M | 30 | 1.25 | 194 | 20 | 9.9×3.3×3.6 |
| SZL30-1.60-M | 30 | 1.6 | 204 | 20 | 9.9×3.3×3.6 |
| SZL30-2.45-M | 30 | 2.45 | 225 | 20 | 9.9×3.3×3.6 |
| SZL35-1.25-M | 35 | 1.25 | 194 | 20 | customized size |
| SZL35-1.60-M | 35 | 1.6 | 204 | 20 | customized size |
| SZL35-2.45-M | 35 | 2.45 | 225 | 20 | customized size |
Work Shop
