Gas steam boilers is an ideal high-efficiency, low-consumption, low-pollution green and environmentally friendly product, so it is loved by the majority of manufacturers and users, and as the scale of enterprises continues to expand as well as considering the future development of enterprises, many enterprises choose to use gas boilers as their main boilers.Oil and gas boilers are bound furnace type, that is to say, oil boilers and gas boilers are a furnace type, the main difference is the choice of burner. Oil boilers are generally fueled by light oil, heavy oil, diesel, etc., while gas boilers are generally fueled by natural gas, liquefied gas, biogas, gas, etc. This series of boilers can also be selected for both oil and gas use.
WNS series gas steam boiler technical parameters
Capacity: 1-20t/h
Working pressure: 0.7-2Mpa
Working temperature: 170-204℃
Thermal efficiency: >98%
Application industries: heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, brewing, rubber, hospitals

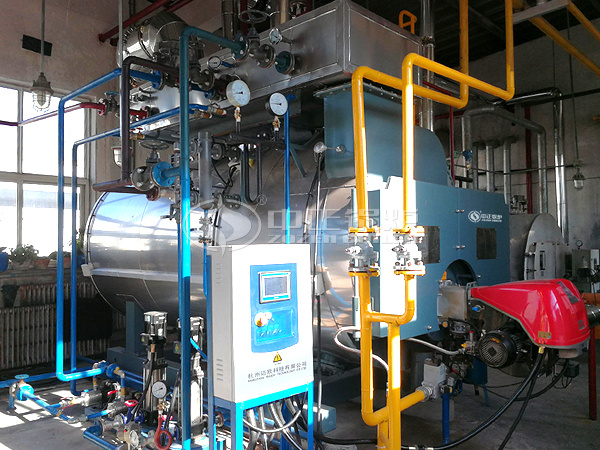

WNS series horizontal three-pass boiler, the structure of the gas steam boilers with full wet-back structure design, large corrugated furnace gall and patented threaded flue pipe technology, configuration of international first-class brand burners and valve sets, independent research and development of high matching degree PLC control system, multiple interlock protection function, all-round protection equipment operation safety and reliability.
In addition, there is an integrated condensing structure boiler, the boiler adopts the body, energy saver, condenser integrated combination design, the heat energy step utilization, the exhaust temperature is extremely low, the thermal efficiency is up to 99% or more. The energy saver and condenser have built-in steel and aluminum composite finned tube counterflow arrangement to strengthen heat transfer. Compared with ordinary furnace models, the process of condensing and condensing water vapor from the flue gas of this series of boilers discharges NOX and other harmful substances from the flue gas with the condensate to achieve energy saving and emission reduction.
About how to choose these two structure boilers, if your business needs condensate recovery, it is recommended to choose one condensing structure boiler, if not, choose ordinary horizontal three-return structure boiler can be.
ZOZEN Boiler focus on industrial boiler research and development, production, sales for more than 30 years, fuel gas boilers, biomass boilers, coal-fired boilers, such as a complete range of models, factory direct sales; products throughout the country more than 30 provinces and cities, and exported to 86 countries and regions; more than 20,000 operating sites, WNS series gas boiler operating site stability, nitrogen oxide emissions below 30mg, in the boiler market has a good reputation.
