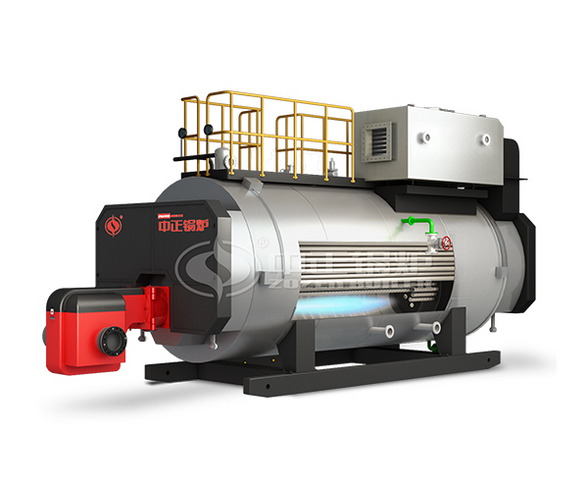

WNS Gas/Oil Fired Hot Water Boiler
- Type：Hot water Boiler
- Capacity：0.7-14 MW
- Pressure：0.7-1.25 Mpa
- Fuel：Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
- Application：Heat supplying, hospital, hotel
Overview
Brief Introduction:
WNS series gas-fired boilers produced by ZOZEN adopt wet back structure with a three-pass design. Large-diameter corrugated furnace is used to increase the heat transfer area and solve the thermal stress problems, making sure that the boilers are running safely and stably.
The manholes are designed at front and back for combustion situation to be observed directly. Condensate drain outlet is arranged at the lowest area of front and rear smoke chamber for condensate water to be discharged at any time. The smoke chamber door features hinge structure, opening like a window for easy maintain and clean.
Furthermore, the smoke chamber adopts unique sealing construction to make sure that the smoke will not have any leaks. The appearance is mirror polished stainless steel with a protective coating. The front and rear panels are sandblasted and painted for attraction, durability and easy maintain.
Application:
WNS series gas & oil fired boiler is mainly used in hospital, school, swimming pool, pharmaceutical factory, package plant, architectural material industry, food industry, textile dyeing and printing industry, clothing industry and other industries.
Benefit
1.Low cost:
This boiler has many advantages such as high combustion efficiency, saving fuel, low investment cost, full pull side butt welds, long safe life and low maintenance cost.
2.High Efficiency:
The boiler tail is equipped with flue gas condensing recovery device which can effectively control the exhaust gas temperature so as to improve the boiler thermal efficiency; it adopts automatic combustor and water supply adopts continuous electrical control to ensure high combustion efficiency.
3.Safe and stable:
It is equipped with various defensive functions like over-temperature, over-pressure, water shortage, leakage detection and flame-out which make sure the boiler run safely and reliably.
4.Saving space:
The boiler adopts fast-assembly structure and the whole boiler is fixed on the steel base with high rigidity to ensure easy installation and transportation and small occupied area.
