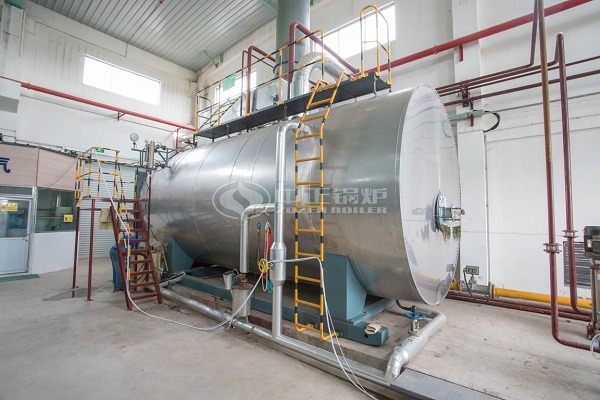

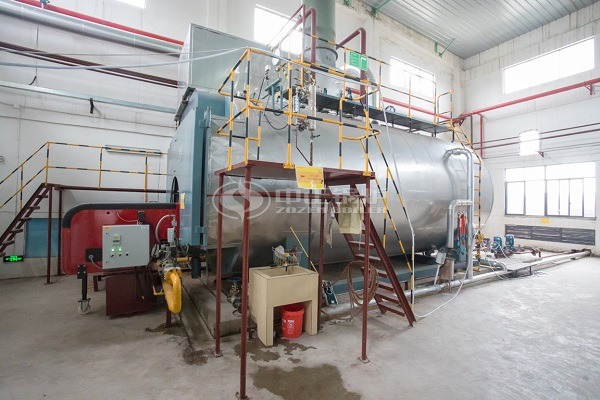

The 6ton gas-fired steam boiler first determined that its tonnage is 6 tons, and the fuel is a steam boiler of natural gas. Next comes its technical parameters. The technical parameters of gas-fired steam boilers mainly include rated evaporation, rated steam pressure, rated steam temperature, feed water temperature and fuel used. Depending on the selected technical parameters, the price will also vary. WNS6-1.25-Q steam boiler has low energy consumption, high thermal efficiency, stable pressure and sufficient gas supply.
After the above parameters are determined, it is necessary to consider the brand of boiler auxiliary equipment (mainly including feeder, fan, induced draft fan, return fan, grate, slag removal machinery, etc.), as well as external conditions such as the transportation area. The 6ton gas-fired steam boiler adopts the popular shell-type three-return, full-wet back structure, and the large-volume design of the combustion chamber makes the combustion more sufficient. Full edge butt weld, high reliability and low maintenance cost. The combustion chamber adopts a fully corrugated furnace structure, which can effectively reduce the expansion stress of the furnace and promote the combustion of fuel in the furnace.
This series of boiler products adopts a unique welding process of smoke pipe and tube sheet. It can prevent the corrosion of the tube gap, enhance the welding strength, reduce the exhaust gas temperature, and improve the thermal efficiency of the boiler. It is designed with various protection functions such as over-temperature, over-pressure, water shortage, leak detection, and flameout, and the boiler operation model is reliable. WNS6-1.25-Q steam boiler has a large space, stores a lot of steam, and has a strong adaptability to load. Reasonably designed built-in steam-water separator device to meet the requirements of users for high-quality steam. The furnace body is provided with manholes, head holes and hand holes, which is convenient for cleaning the inside of the furnace, making maintenance and maintenance extremely convenient.
The natural gas steam boiler control system can automatically enter the work or get off work state by operating the timing function. The control system can set up multiple groups of timing periods within 24 hours. When the current time is in any group of time periods of multiple groups of time periods, the system enters the working state. During the regular working hours, the screen will be displayed in an automatic state. Off-duty outside of working hours. Each group of time periods includes an on time (hour, minute) and an off time (hour, minute). Through the setting operation, the hour, minute and current time of the three groups of control time periods can be set or modified. Users can set different temperature ranges in different time periods.
WNS6-1.25-Q steam boiler has sufficient safety performance and is designed with various protection functions, so the boiler runs safely and reliably. If you want to inquire about the price of the boiler on our website, please provide us with the technical parameters, tonnage, usage and other information of the boiler as detailed as possible, so that the staff of Zozen Boilers can provide you with a more accurate quotation. , saving you even more time.
